Steenmachine
Natuurlijke stenen verwerkingsmachines

Natuurlijke stenen verwerkingsmachines

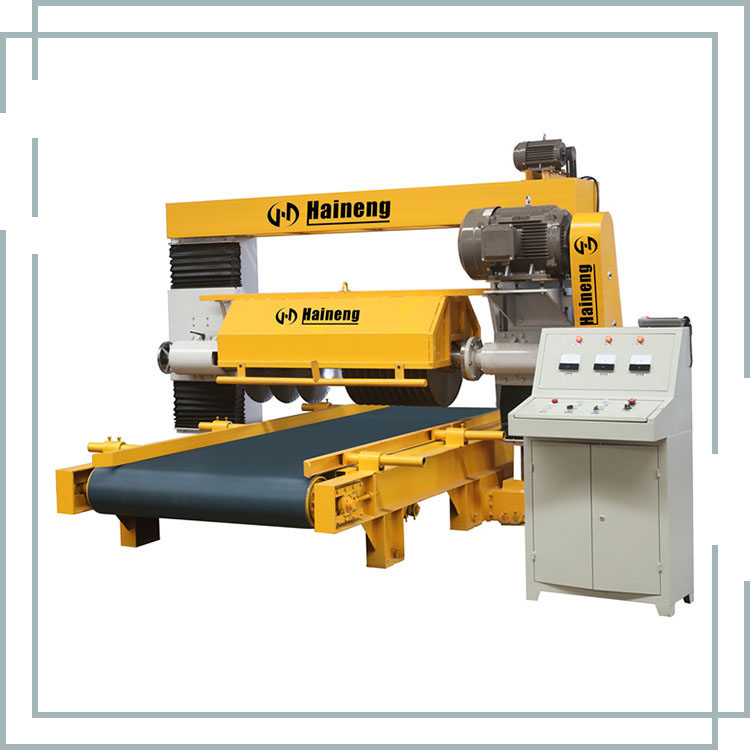

Model:KDQ-600
Welkom om op elk gewenst moment natuurlijke verwerkingsmachines van onze fabriek te kopen. We zullen u voorzien van fabriekskortingsprijzen voor onze producten. Xinhaineng is fabrikant en leverancier van natuursteenverwerkingsmachines in China.

Natural Stone Processing Machines is a kind of equipment specially used for processing, cutting and carving of natural stone. Natural stone processing machinery is widely used in the fields of construction, gardening, exterior wall decoration, stone carving, tombstones, etc. Natural Stone Processing Machines are composed of CNC cutting machines, electric polishing machines, water cutting machines, engraving machines, etc. Different equipment has different functions and application ranges. Stone CNC cutting machine is used for fast and accurate cutting of stone. It can automatically cut and cut materials without too much manual intervention, which greatly improves production efficiency. Stone polishing machine is mainly used for polishing and processing of stone surface, which can improve the flatness and brightness of stone surface and make the stone more beautiful. Stone water cutting machine uses high-pressure water flow to cut and process stone. It can achieve a variety of cutting effects without damaging the texture of the stone. Stone engraving machine is used to engrave and print stone. It can produce various shapes, patterns and designs. It is often used in various cultural places.


1.This machine applies to the factory that provides a great deal of specification stone material toward huge construction engineering. The machine features as the high efficiency, accurate specification and stable function. It is well-received by vast customer.

2.Efficient multiple stone machine adopt the portal structure, the main spindle saw blade rotates, wheel box output. Use the increaser and double-sided wheel together. The rotating, feeding, and retrieving of the machine’s blades as well as the bodily horizontal movement of the trolley are entirely controlled from an electric control unit. It has high automation level, with excellent machine-ability. Stable performance as well as high efficiency and low energy consumption. Cuts the rubble stone, curb stone. It is the most ideal stone material for engine bed.

3.Before the machine is used, adjusting the distance between the saw blades(it can be produced according to the consumer’s needs), the most can packing up 6 saw blades aone time, and the machine can cut the slates with standard homologous specification and homologous quantity. The saw blade is of electric up and down, back and forth auto cutting. The largest width it can process is 1100mm


Product Parameters


Max.cutting length

mm

2000

Max.cutting width

mm

1400

Max.cutting height

mm

200

Main shaft length

mm

1400

Main shaft dia.

mm

100

Flange size

mm

180

Blade diameter

mm

600

Trolley size

mm

1600*1400

Main motor power

kw

37

Gross power

kw

42

Exhausted water

m3/h

5.2

Overall size

mm

7000*3130*2450

Gross weight

kg

5200


Processing process



Packaging & Shipping





Hottags: Natuurlijke stenen verwerkingsmachines, China, fabrikant, leverancier, fabriek
